China Mobile Electric Self-propelled Hydraulic Scissor Lift Platform Table Aerial Man Lift All Rough Terrain Lifter Scaffolding wholesale

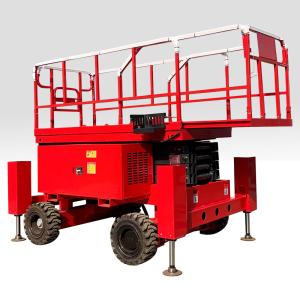

Mobile Electric Self-propelled Hydraulic Scissor Lift Platform Table Aerial Man Lift All Rough Terrain Lifter Scaffolding

Name: Mobile Electric Selfpropelled Hydraulic Scissor Lift Platform Table Aerial Man Lift All Rough Terrain Lifter Scaffolding
Brand: LUHONGDA
Price: 1 USD

Ask Latest Price

Video Channel

Condition :New

Wheelbase :2400mm

Model Number :12m Aerial Lifting Platform

Brand Name :LUHONGDA

Place of Origin :Shandong, China

Applicable Industries :Retail, Farms, Construction works , Building Material Shops, Advertising Company, Food & Beverage Shops, Machinery Repair Shops

drive speed-raised :0-30 m/min

drive speed-stowed :0-30m/min

Gradeability :0.25

Ground clearance :0.3 m

Height- stowed :2m

Lift capacity on the extension :100 kg

Lifting/lowering speed :80/90 sec

Material :Other

Max platform height :4m 6m 8m 10m 12m 14m

max. platform occupancy :2 pers

min.Turning radius (inside) :2.8m

min.Turning radius (outside) :3m

Overall Length :3000 mm

Overall Width :2200 mm

Platform length-extended :2800mm

Power Souce :Electric

Table Size :2700 mm x 1300 mm

Total weight :4300 kg

Weight :4300kg

Width :2000 mm

Safe Working Load :500 kg

Total Extension Length (Left/Right) :0.9 m

Safe Working Load on Extended Platform :113 kg

Maximum Number of Workers :2

Maximum Working Height :14 m

Maximum Platform Height :12m

Overall Length (Approx.) :3000 mm

Overall Width (Approx.) :2200 mm

Overall Height (Unfolded Guardrail) :2700 mm

Overall Height (Folded Guardrail) :2000 mm

MOQ :1 set

Contact Now

Add to Cart

View Product Description

Mobile Electric Self-propelled Hydraulic Scissor Lift Platform Table Aerial Man Lift All Rough Terrain Lifter Scaffolding

Parameter	Value
Safe Working Load	500 kg
Total Extension Length (Left/Right)	0.9 m
Safe Working Load on Extended Platform	113 kg
Maximum Number of Workers	2
Maximum Working Height	14 m
Maximum Platform Height	12 m
Overall Length (Approx.)	3000 mm
Overall Width (Approx.)	2200 mm
Overall Height (Unfolded Guardrail)	2700 mm
Overall Height (Folded Guardrail)	2000 mm
Working Platform Size (L x W)	2700 mm x 1300 mm
Minimum Ground Clearance (Retracted)	0.3 m
Minimum Turning Radius (Inner Wheel)	2.8 m
Minimum Turning Radius (Outer Wheel)	3 m
Travel Speed (Retracted)	0-30 m/min
Travel Speed (Raised)	0-10 m/min
Ascending/Descending Speed	80/90 sec
Maintenance-Free Batteries (8 pcs)	6V each, 200Ah
Maximum Climbing Ability	0.25
Tires	278.515
Total Weight (Approx.)	4300 kg

Reliable Safety for Elevated Work This scissor lift platform is designed with safety as the top priority. It is equipped with strong guardrails, stable hydraulic outriggers, and an emergency lowering system, ensuring that operators can work at height with full confidence. Every detail is engineered to meet international safety standards, making it a trusted choice for overseas users. Powerful Load Capacity & Stable Performance With a reinforced structure and high-strength materials, the platform offers excellent load capacity while maintaining outstanding stability. It can carry multiple workers along with tools and equipment at the same time, providing great efficiency for construction, maintenance, and installation projects. Easy to Operate & Highly Efficient The control system is simple, intuitive, and available both on the platform and on the ground. Operators can raise, lower, and maneuver the lift smoothly with minimal training. This ease of use saves time and improves overall work efficiency. Durable Construction, Low Maintenance Manufactured with premium steel and equipped with heavy-duty tires, the lift is built to withstand tough working conditions. Its durable design reduces downtime and maintenance costs, giving customers a reliable long-term investment.

Customized Solutions for Your Needs

We understand that every customer has unique requirements. That’s why we offer customization options such as platform height, power source (diesel, electric, or hybrid), and even machine coloror branding. Our goal is to provide overseas clients with a lifting solution tailored to their specific needs.
